VERTICAL ROLLER MILL




MAIN FEATURES



SIMA vertical roller mills use 30-50% less energy than ball mill systems. Its good for profits, good for the environment.

Space-saving design reduces civil construc- tion costs.

Simple layout and operation with fewer machines in the circuit ensure high run-factor.

Excellent drying makes

the mill well suited for grinding blast furnace slag or blended cements from one or more wet components.

Low vibration made possible by specially designed roller and table profiles ensures operating reliability.

Curved table increases retention time and grinding bed thickness for smooth operation.

Easy to adjust Blaine and particle size dis- tribution for required cement quality.

During slag grinding, wear is minimized via a special by-pass that removes iron particles from the grinding table.

All exposed surfaces

are wear-protected.

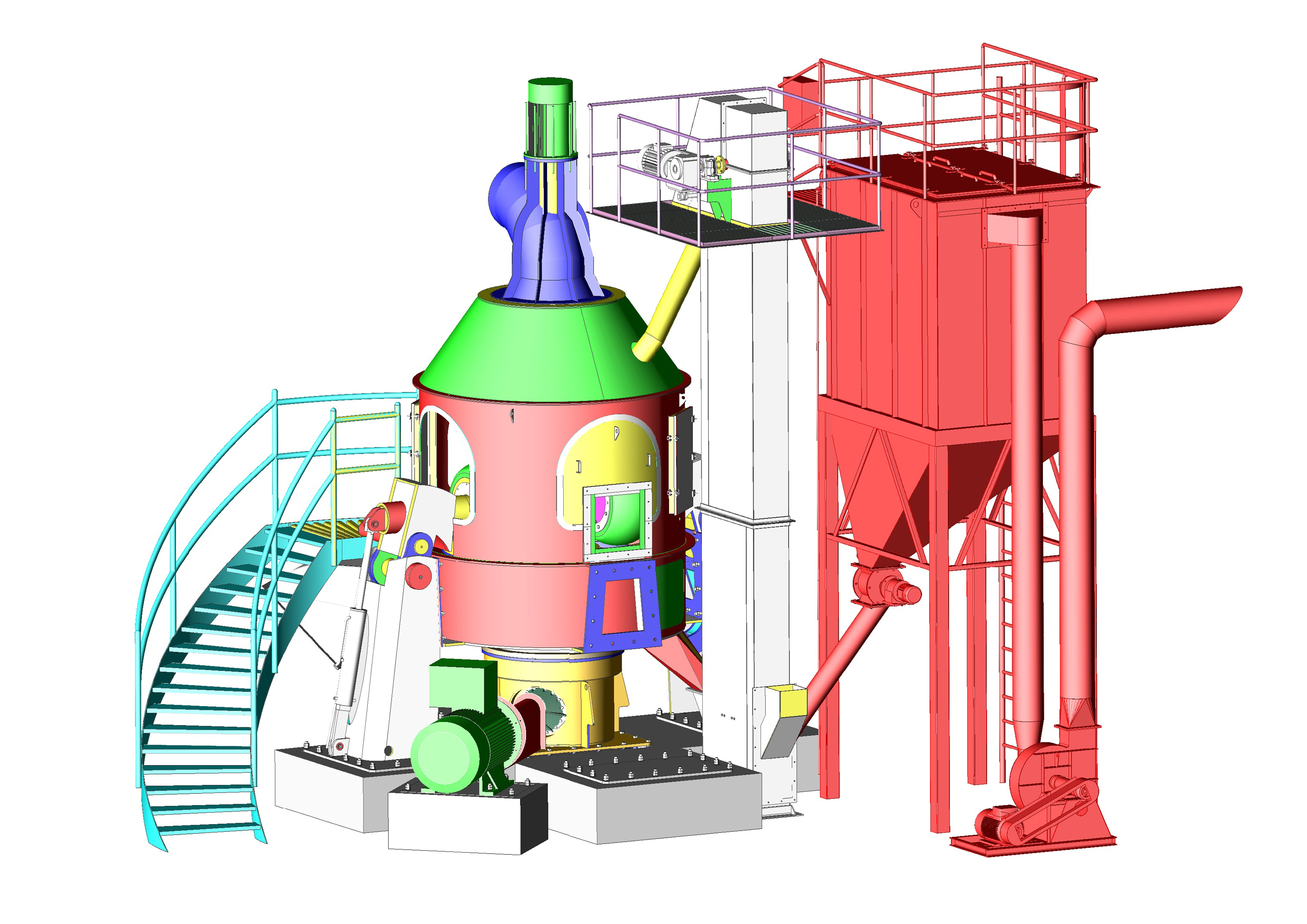

VERTICAL ROLLER MILL

the SIMA VERTICAL ROLLER MILL series is the premier roller mill for finish grinding of Portland cement, slag and blended cements. With a 30-45% reduction in the energy requirements forcement grinding and 40-50% for slag as compared with traditional ball mill operations,



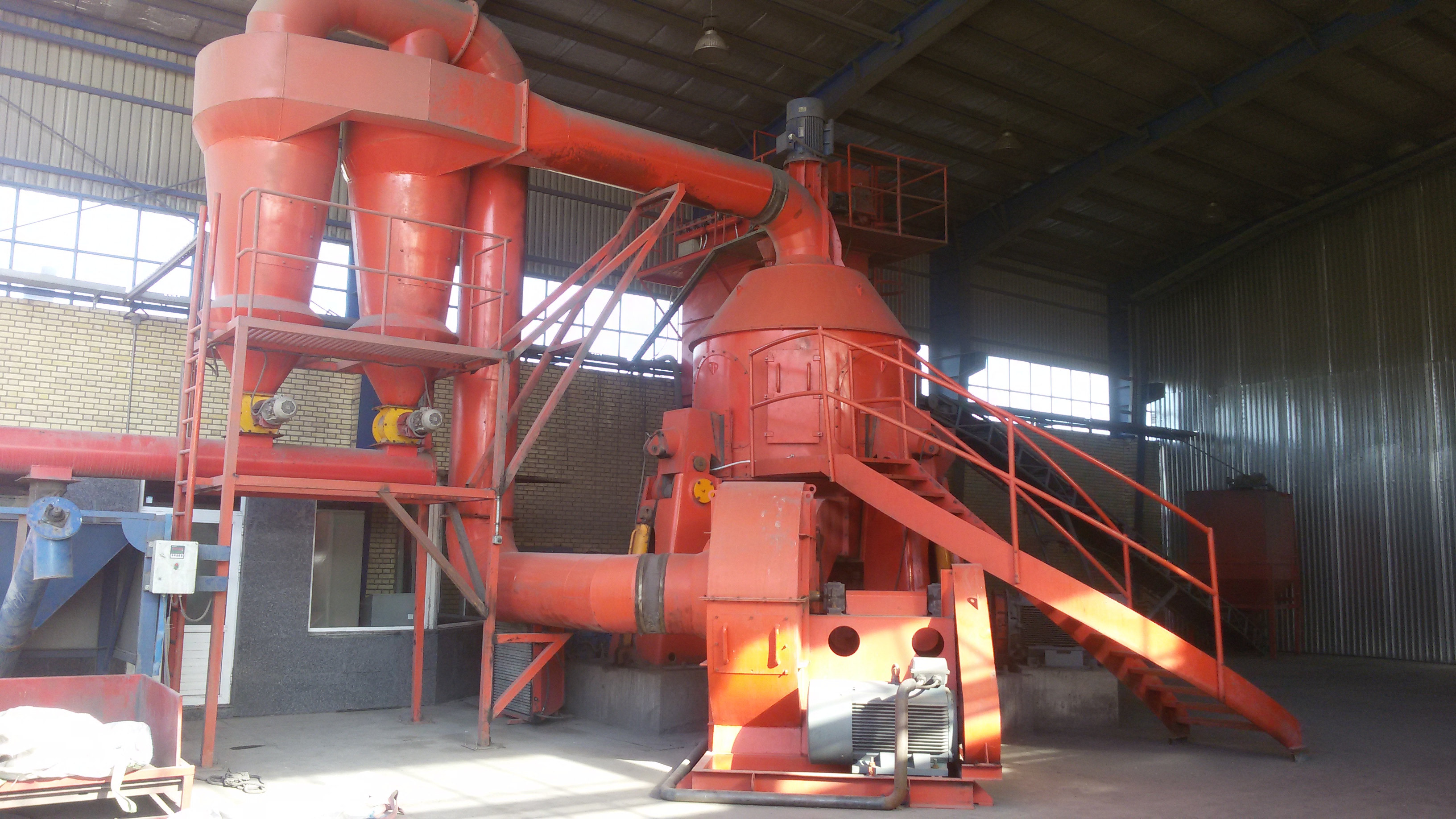

SIMA RM 10-20 mill under erection



The SIMA mill can contribute significantly to your profitability and competitiveness.



The design combines the drying, grinding and separation processes into just one unit, thus simplifying the plant layout. A low noise level makes outdoor installation feasible,


Substantially reducing
civil construction costs and improving the working environment.



Because of its highly effective drying performance, the SIMA mill is a natural choice for grinding blended cements with one or more wet components.



Design advantages

Depending on its size, the SIMA mill has three or four rollers. They are hydro-pneumatically pressed against the material bed on the rotating grinding table.

A patented grooved roller profile creates a high and concentrated grinding pressure on the outer path, allowing air to escape in the middle. The inner path serves to even out and consolidate the material before it continues to the next roller.

The segmented roller wear parts can be made of even the hardest material without risk of cracking and are very well suited for hard facing. Moreover, the segments are reversible, so their full width can be utilized. These features ensure maximum longevity.



Operating advantages

The rollers are in a lifted position when the mill is started, ensuring trouble-free startup. This eliminates the need for an auxiliary drive. A control system supervises the machinery and facilitates operation.











Typical wear  rates (g/t  cement) of wear  parts



Portland cement

Slag



Roller

Table

Roller

Table

Without hardfacing

1

1

5

6

With hardfacing

0.5

0.5

2.5

3.0

*50/50 clinker and slag mixture

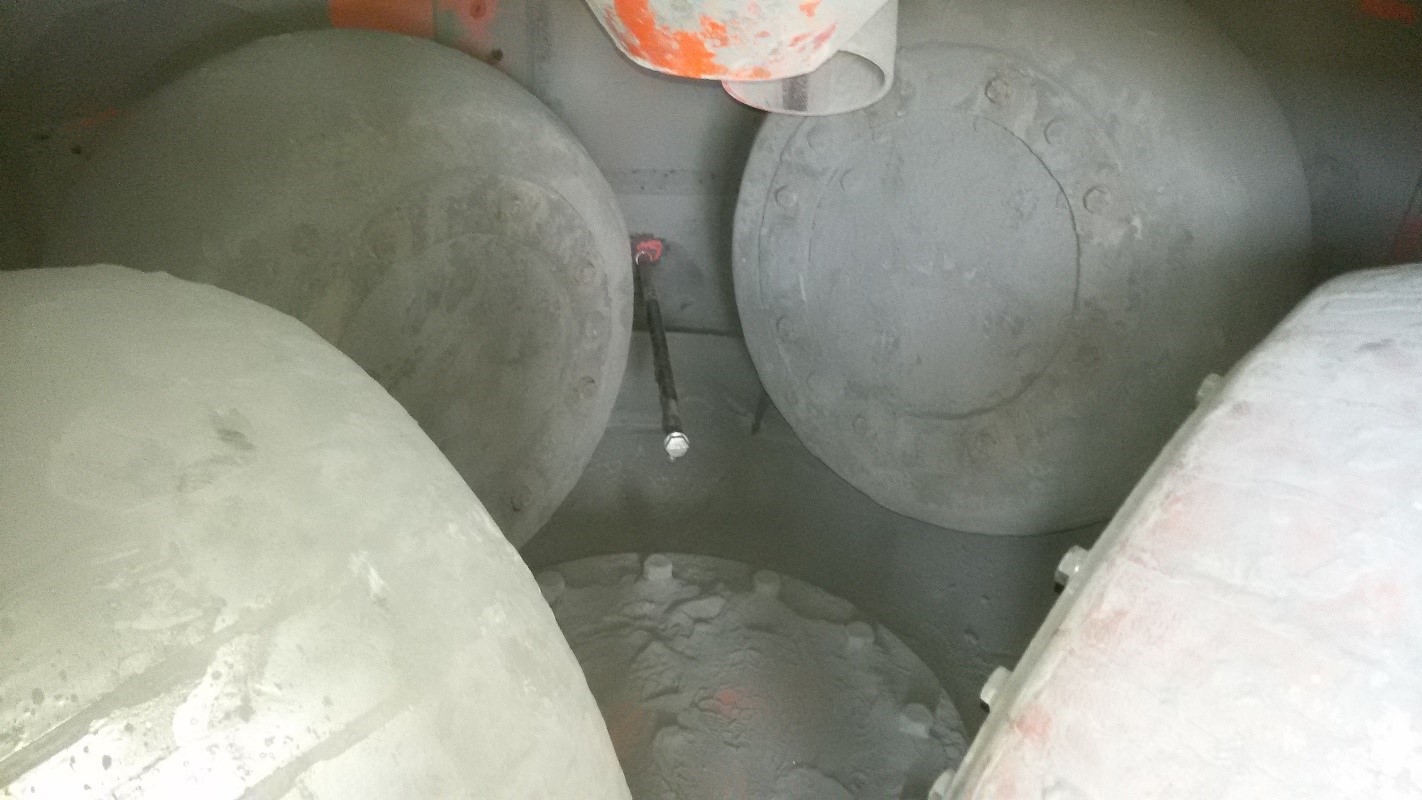

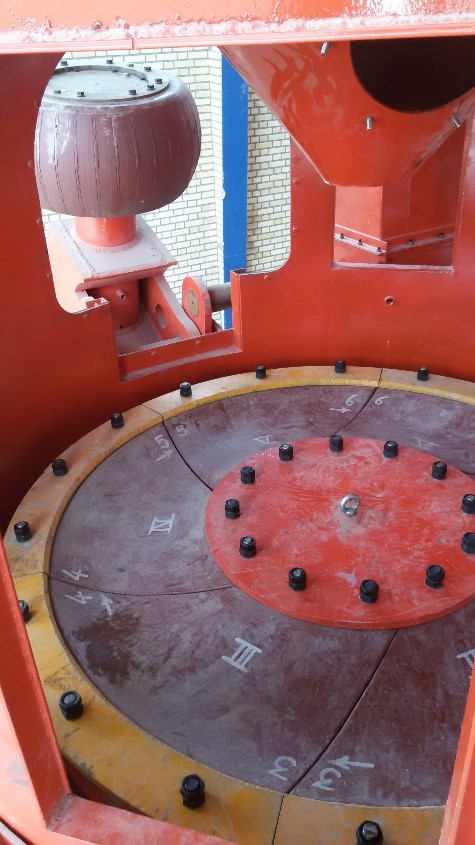

                          View of rollers inside an SIMA mill                                   SIMA 33-4 for slag









Our brochure makes no offers, representations or warranties  (express or implied), and information and data contained in this brochure are for general reference only and may change any time. Please contact us for specific information or data that may relate to your interests.





Typical specific  energy consumption (kWh/t) motor  input



Portland cement

Slag*

Blaine (cm2/g)

3,300

4,000

4,000

5,000



SIMA mill

Ball mill

SIMA mill

Ball mill

SIMA mill

Ball mill

SIMA mill

Ball mill

Mill

17.6

34.2

21.3

44.9

25.7

51.8

32.2

71.1

Fan etc.

6.9

3.2

8.3

4.9

9.4

7.6

13.0

12.3

Total

24.5

37.4

29.6

49.8

35.1

59.4

45.2

83.4

*Slag with 8% moisture





The capacity range depends on fineness, grindability and additives (types and portion of mill feed)

SIMA Mill

size

20-10

24-12

27-13

28-14

30-15

32-16

34-17

Mill motor, installed

kW

200

355

460

640

800

960

120

Airflow, approx., mill outlet

Nm3/s

26

36

47

60

75

91

110

Cement, capacity range

t/h

10-15

 20-25

 30-35

  40-45

 50-55

  60-65

  70-75

Slag, capacity range

t/h

 3- 8

5-10

10-15

 20-25

30-35

  40-45

  50-55












































Typical wear  rates (g/t  cement) of wear  parts



Portland cement

Slag



Roller

Table

Roller

Table

Without hardfacing

1

1

5

6

With hardfacing

0.5

0.5

2.5

3.0

*50/50 clinker and slag mixture


















 View of rollers inside an SIMA mill            SIMA RM 10-20 for slag





The capacity range depends on fineness, grindability and additives (types and portion of mill feed)

SIMA Mill

size

10-20

12-24

13-27

14-28

15-30

16-32

17-34

Mill motor, installed

kW

355

460

640

800

960

1200

1400

Airflow, approx., mill outlet

Nm3/s

26

36

47

60

75

91

110

Cement, capacity range

t/h

10-15

 20-25

 30-35

  40-45

 50-55

  60-65

  70-75

Slag, capacity range

t/h

 3- 8

5-10

10-15

 20-25

30-35

  40-45

  50-55































Simaie Sanate Spadana Co.Ltd

                                 Tel: 0098 31 37777484

                   Fax: 0098 31 37777484

                   Cell: 0098 9103142167

                   E-mail:This email address is being protected from spambots. You need JavaScript enabled to view it.
                   Unit 1, No. 174, Roodaki St. Vahid Blvd.
                                 Isfahan - Iran, Post Code: 19881769



Simaye Sanat Spadana

Asiyab Sima Company has more than 10 years of experience in designing and manufacturing machines and equipment. In addition, Sima Mill has been a pioneer and expert in Iran's high-tech industry market by carrying out up to 10 turnkey projects.
